Square Part 1 – Standard Setup

Make sure you are subscribed for the SynthesisVR’s Square module:

• Go to “Administration >> Arcade Setup >> SynthesisVR Subscriptions” and subscribe for the “Square Payments” module (it is free).

Once subscribed, you need to set up a new app account on Square by heading to https://developer.squareup.com/apps and logging into your square account (if not already logged in).

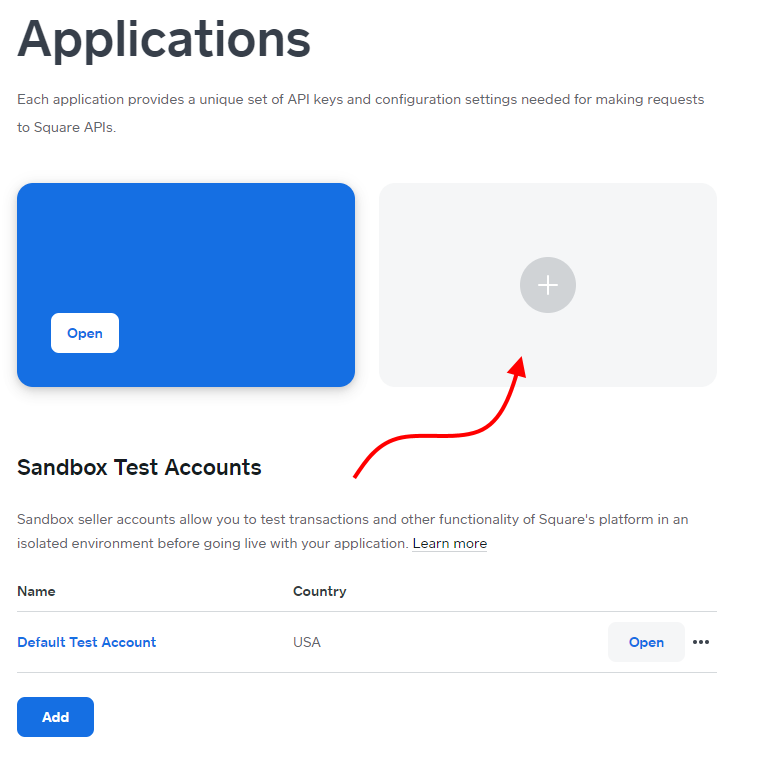

You need to set up a new “app” to allow SynthesisVR to connect to Square. First, you’ll need to click on the big “+”

​

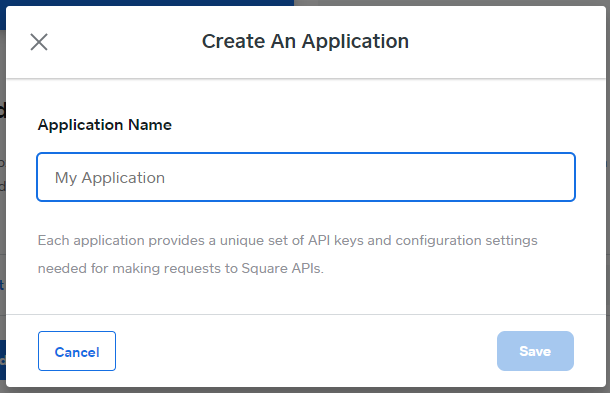

Create an Application Name (like Arcade Name Square Processing or something) and then click on Save.

​

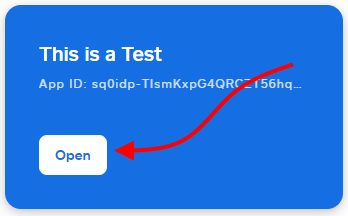

Once created, click on the Open button to get to all the data you will need:

​

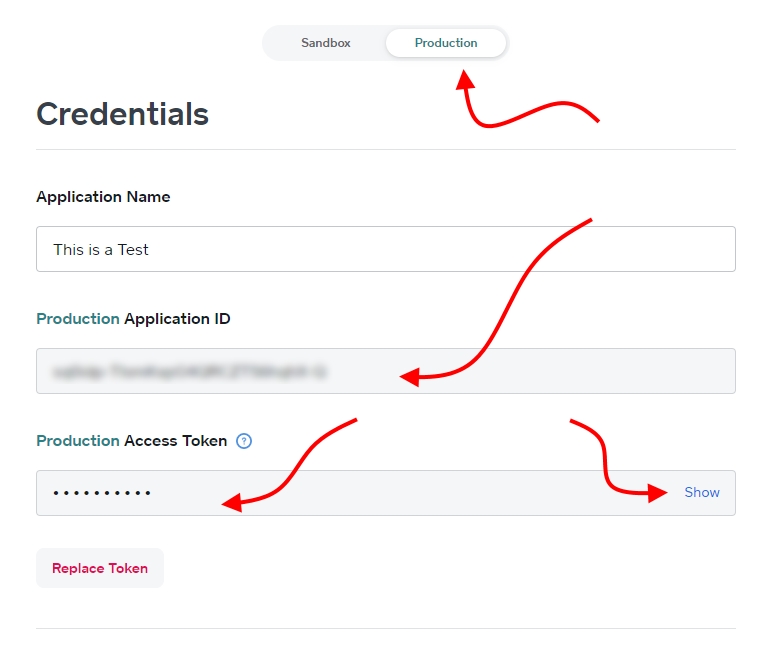

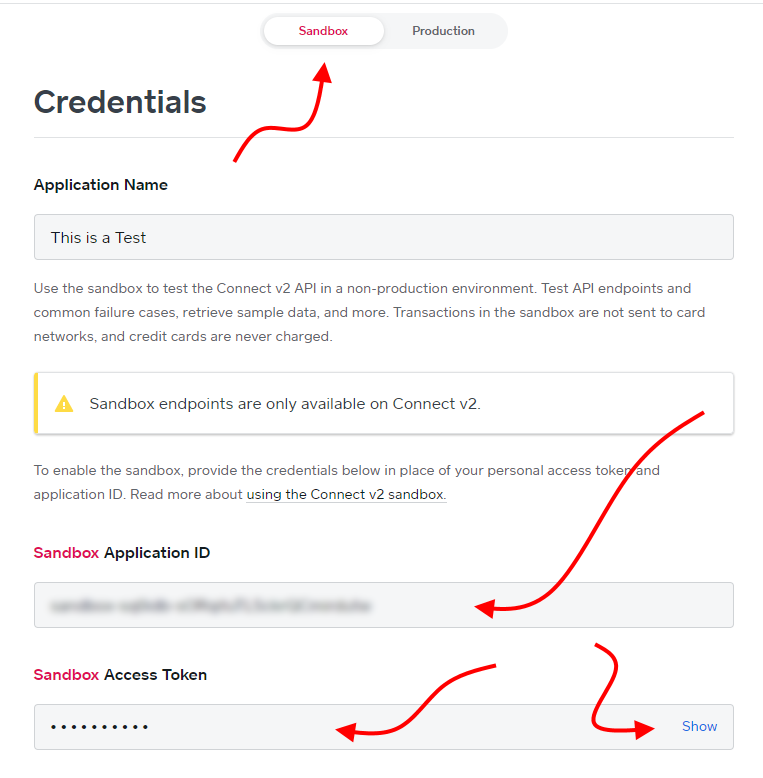

You’ll then need to get the information from both the Sandbox and Production sections (within the Credentials section, which is where you start):

​

​

As well as location information from the Locations section (again, both Sandbox and Production):

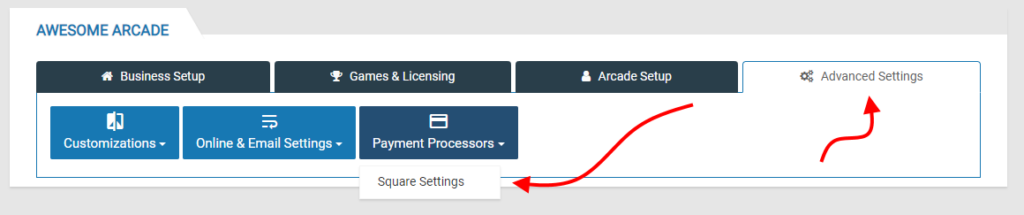

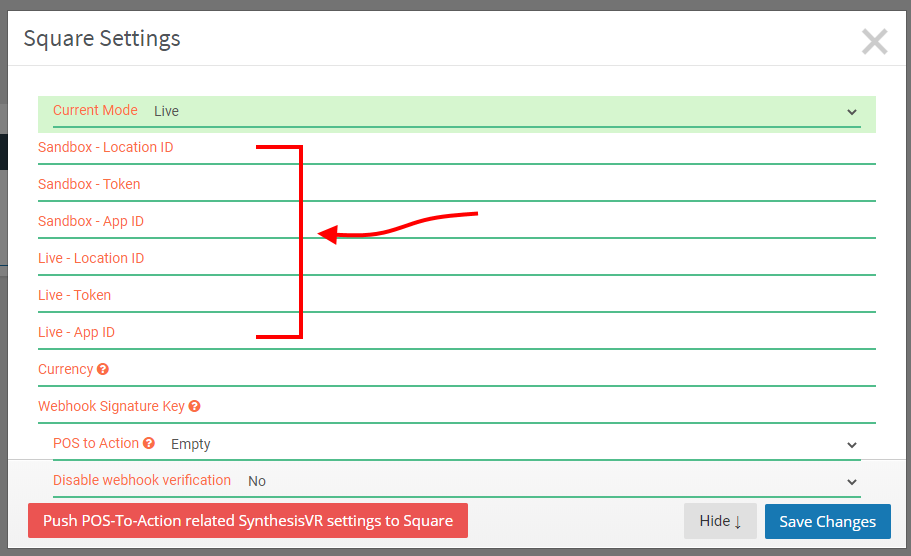

You will then paste this information into your Square Settings (note that “Live” is equivalent to “Production”):

​

​

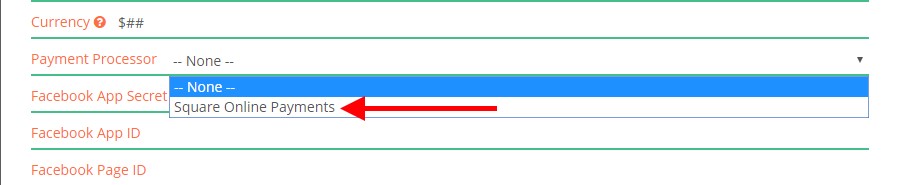

To integrate Square into SynthesisVR for payments in your store, head to  “Administration” and click on your arcade name. You will get a popup. Locate and change the following option:

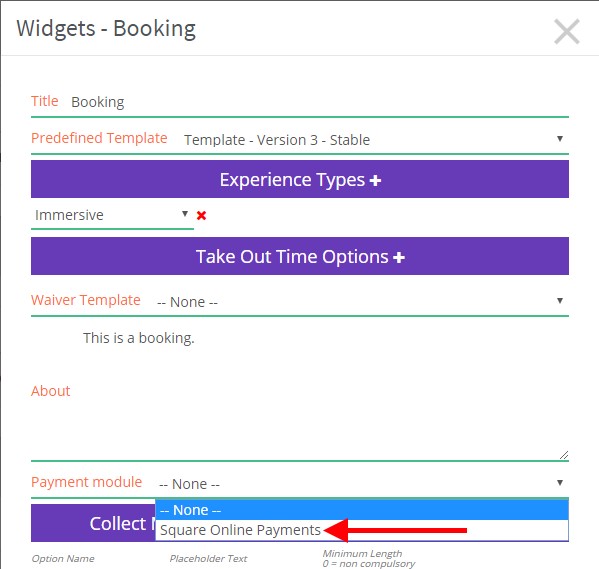

If you are looking to integrate Square into any web widgets, make sure the correct payment processor is assigned in there as well:

Sandbox Mode:

For using Square in Sandbox mode, please add the following to “Add HTML before the BODY tag closure”:

• <script>
• window.svr.squareNonce = 'cnon:card-nonce-ok';
• window.svr.squareUpURL = 'https://js.squareupsandbox.com/v2/paymentform';
• </script>

When testing the widget, use the following ZIP code:

• 94103

For testing different payment scenarios, please refer to the test Square data:

• https://developer.squareup.com/docs/testing/test-values

---
